Motan-colortronic shows combined technologies at Fakuma

September, 17th, 2015 - During this year’s Fakuma in Friedrichshafen from the 13th to the 17th of October in hall B1 stand 1111, motan-colortronic will show that the combination of established technologies from both motan and colortronic is key. The focus will be the Metro G material loaders, which can now be fully integrated into existing colortronic systems. At the same time, existing colortronic material loaders can now be integrated into new motan systems. This offers maximum flexibility and saves costs, says the company. This highlight will be complemented with the new synchronous dosing unit Miniblend V, also a combination of time-tested and reliable engineering from colortronic and motan.

Modular building block principle enables conveying optimization

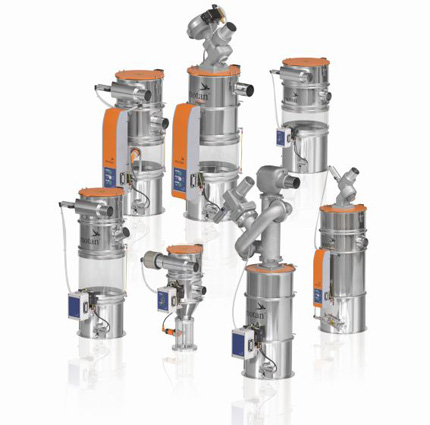

Motan engineers have combined technologies from Motan and Colortronic with the Metro G and extended it with new features. Metro G's modular building block system allows users to configure and create the optimal material loader for any application, according to Motan. Different sizes of material inlets which can be matched exactly to material throughputs and conveying distances, are now offered in addition to the various different material loader volumes. Modules with a tangential material inlet that operate with a cyclone effect are still available for materials with difficult separation behaviour. Customers can also choose between different vacuum valves. Thus, a standard unit can be upgraded to a clean room version with a special membrane vacuum valve. A dedusting module enables fine dust removal at the end of the conveying process in order to protect the following processing step when there is a particularly high demand for material quality. Metro G material loaders allow the configuration of a suitable conveying system for every individual requirement.

The Metro G material loaders can be operated either with a cost effective solution or right up to an innovative state-of-the-art controls system, explains Motan. To begin with, the customer can choose between three different loader controls. Furthermore, different centralized conveying controls are available: Selvac 2 is a simple and time-tested electronic system which provides an economically priced solution. The Metronet S is considered part of the standard conveying systems as a soft PLC conveying control. The ultimate, network-compatible tool for complex conveying systems is the Metronet A, either with soft PLC or Siemens S7 PLC, with WEBpanel, and decentral CAN-bus nodes. All Metronet controls are completely integrated into the Controlnet platform and can be networked with other controls via Ethernet.

Synchronous dosing units improve recipe accuracy

Just like with the Metro G, time-tested colortronic mechanics have been combined with quality motan controls and have been extended with additional features for the Miniblend V. The volumetric dosing and mixing unit Miniblend V was designed for free and normal flowing materials and is ideal for translucent and opaque parts. As an additive dosing unit, the Miniblend is suitable for injection moulding and extrusion applications.

As a synchronous dosing unit, the Miniblend V offers recipe accuracy and reproducibility, which can be traced at any time, according to Motan. The additive is fed vertically and is gravity fed into the inlet of the processing machine through the Y-shaped mixing throat of the unit. This prevents material buildup and bridging effects. The main material and the additive combine just before the inlet of the processing machine. Only at this point do they flow together to create a homogenous mixture – without material segregation.

Motan says that the particular benefit of disc dosing is the dosing consistency: compared to screw dosing units, the dosing consistency at throughputs of 0.5 to 5 kg/h can be doubled. The dosing discs are available in three different versions (optional wear resistant versions) from 0.05 to 10.5 kg/h (bulk density 0.6 kg/h). When dosing very small throughputs, a single granule can have a huge effect on the mixture accuracy. In order to solve this problem, all dosing discs are fitted with a cutting device. This makes it possible to cut granules into smaller pieces in order to consistently dose the smallest throughputs.

The brushless motor can be removed very easily and without tools, and is fitted with integrated motor management, which provides maintenance-free and reliable continuous operation, according to Motan. The controls communication occurs via CAN-bus technology. The unit can be operated with the volumetric motan controls Volu MC or Volunet MC. The Volu MC controls are an economically priced solution for volumetric dosing of concentrates and master batches. The modern Volunet MC microprocessor controls with timer function feature simple and intuitive operation for an Ethernet TCP network connection. Using the intuitive touch screen colour display, an unproblematic operation of the additive auto calibration is possible and up to 50 recipes can be saved.

Source: Motan
